Geometry-wise the QUATTRO Disc closely matches its rim-brake racing bikes. The classic parallel angles add a level of familiarity that all adds to the joyous way the QUATTRO flows with your inputs.

The one difference from the non-disc version is the wheelbase. It's longer, thanks to the 415mm chainstays – a requirement to ensure chainline accuracy with the wider rear hub requirements of disc brakes.

Such is the quality of the QUATTRO's responses, though, that what you actually get is an addictive blend of sharpness and high-speed, stiffer climb killer now the stability of disc brakes makes this bike a perfect mountain weapon.


FOLLOW NO ONE, RIDE ZEROUNO!


CONFIGURATIONS:

Website Photos.001.jpeg


QUATTRO DISC FRAME SPECH

Frame: QUATTRO DISC
Frame Material: LUNAR HM CF Monocoque
Fork: SPAZIALE Rock & Road D
Fork Material: LUNAR HM CF Monocoque
Head Tube: Integrate and Tapered
Bottom Bracket Type: BB86
Brakes: Disc brakes only
Cable Routing: Internal
Compatibility: Mechanical or Electronic drivetrains
Seatpost Diameter: 27.2
Seatclamp Diameter: 31.8
Wheels Axles: Front 100-12 / Rear 142-12
Colors: Optical Carbon Stealth / Yellow Ferrari / Pure Polar White / Fresh Mint Green / Blue Oltremare / Custom Colors

Recommended Use: Road Race and Road Marathon only
Weight: 820g

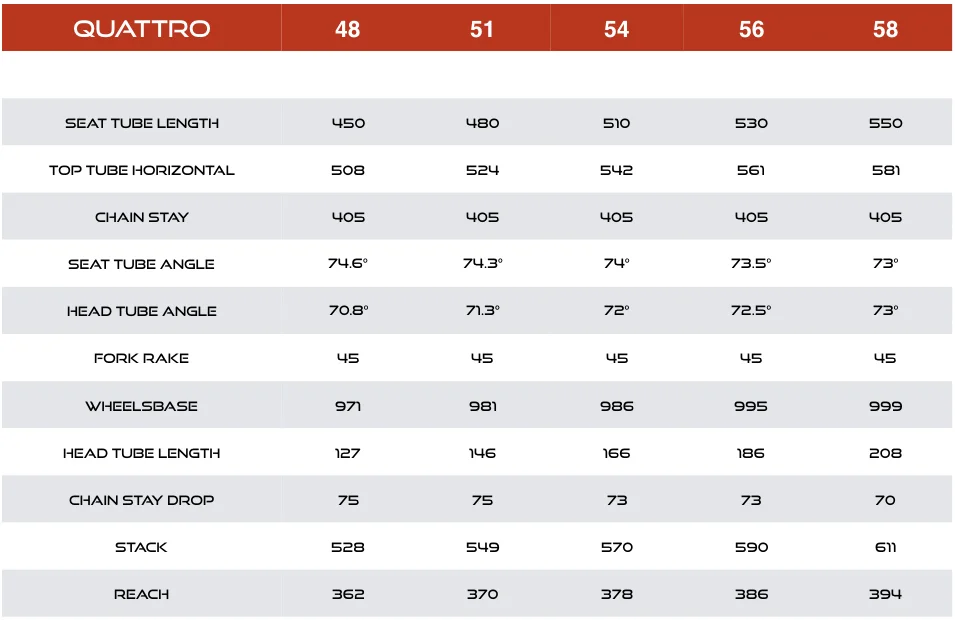

GEOMETRY

MY2019 GEOMETRY.001.jpeg
